Introduction

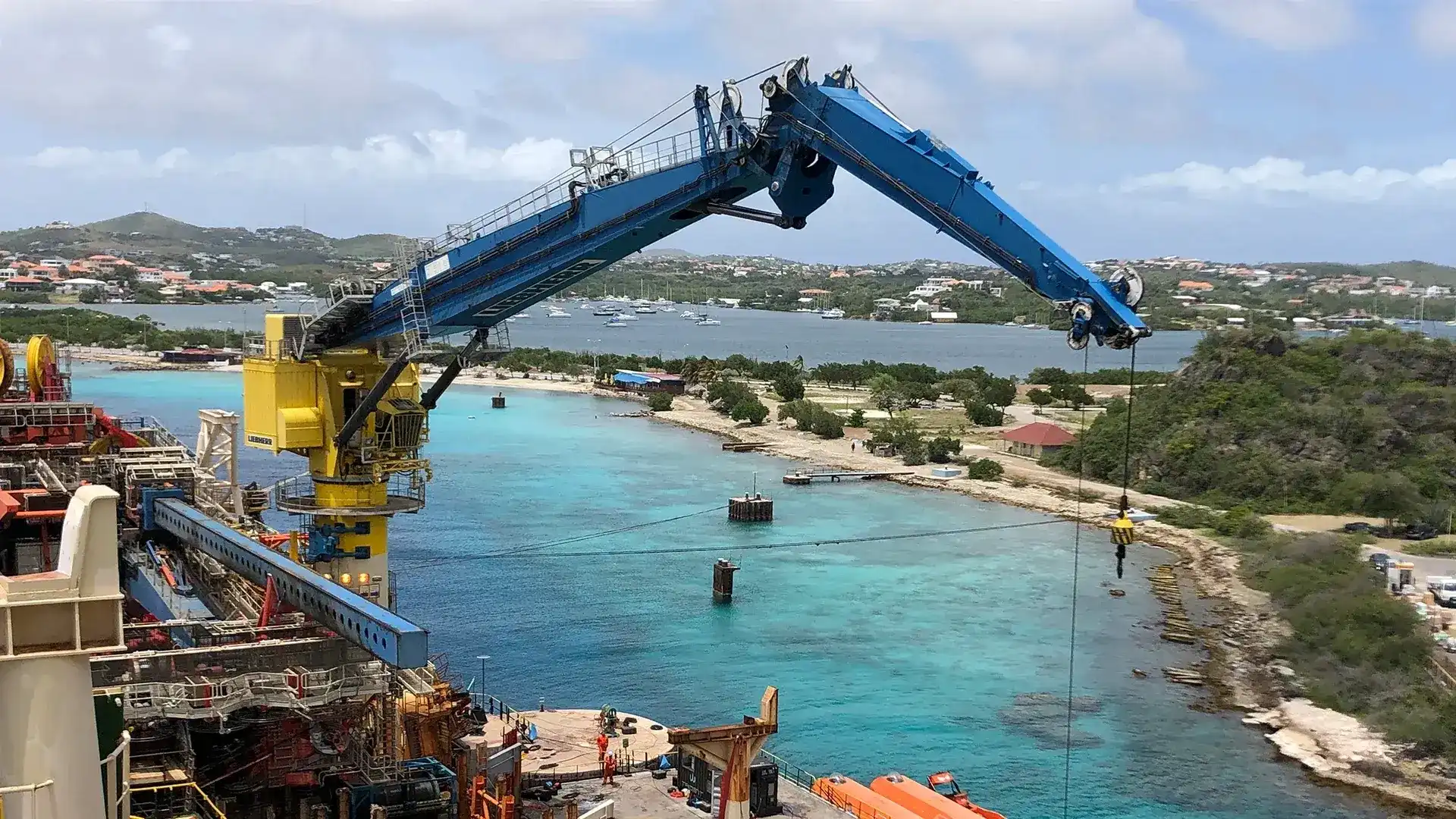

If you have spent any time around ports, shipyards, or offshore vessels, you have likely noticed that not all cranes are built the same. Among the most specialized and increasingly dominant pieces of equipment in the maritime industry is the marine knuckle boom crane. Unlike traditional straight boom cranes, these machines feature a distinct "hinged" design that offers unparalleled flexibility and precision in the harsh marine environment.
But what exactly is a marine knuckle boom crane, and why has it become the go-to solution for everything from oil recovery to aquaculture? This comprehensive guide will explore the definition, history, core advantages, and cutting-edge technological advancements of these versatile lifting machines.
Definition and Core Mechanics
A marine knuckle boom crane is a type of pedestal-mounted, slew-bearing crane characterized by an articulated boom with a joint—or "knuckle"—in the middle . This design allows the distal boom to articulate or fold back like a finger, creating two boom sections: the main boom and the jib (outer boom) .
This articulation provides a significant advantage over straight boom cranes. Because of this flexible elbow, the crane maintains a low operating height when not in use, preventing interference with a vessel's rigging or overhead obstructions . In essence, it combines the lifting power of a conventional crane with the dexterity of a human arm.
Engineered for Your Success
360° Rotation & Compact Design: Work efficiently in confined spaces without sacrificing power.
Electric & Hydraulic Systems: Select your preferred control mode for optimized performance.
Customizable Configurations: Adapt load capacities, boom length, and control systems to your unique requirements.
Key Advantages of the Knuckle Boom Design
The specific geometry of the knuckle boom offers several distinct benefits for shipboard and offshore use:
1. Space Efficiency and Compact Storage
On a vessel, deck space is at a premium. The knuckle boom's ability to fold back—essentially collapsing the jib parallel to the main boom—creates a compact footprint when the crane is stored . This "foldable" nature is ideal for vessels where clutter can impede operations or safety.
2. Precision and Control
The articulation point allows operators to "reach over" and "into" locations with greater precision. The knuckle joint enables the boom to get closer to the load, minimizing the pendulum effect often seen in swinging loads on rough seas . This precise load handling is crucial when landing equipment on offshore platforms or recovering objects from the water.
3. Versatility in Reach and Capacity
Because of the flexible elbow, these cranes offer a wide range of motion. They can lift heavy loads with a shorter radius (increasing the safe working load) and then extend to a longer outreach for lighter cargo placement . Modern models, such as Palfinger's PFM series, can reach over 29 meters while still lifting significant weight .
4. Lightweight Construction
Modern design philosophies emphasize using corrosion-resistant materials and high-pressure hydraulic systems. This results in a crane that is significantly lighter than conventional cargo-handling units, allowing vessels to carry a bigger cargo payload without sacrificing lifting capability .
Knuckle Boom Crane vs. Traditional Cranes
Choosing the right crane for marine and offshore operations is a critical decision that impacts efficiency, safety, and the bottom line. The two primary contenders in this space are the knuckle boom crane (also known as an articulating or folding boom crane) and the traditional straight boom crane (sometimes called a stiff boom or telescopic boom crane) . While both are designed to lift and move heavy objects, their operational philosophies are fundamentally different.
| Feature | Knuckle Boom Crane | Straight Boom Crane |
|---|---|---|
| Design | Articulated arm with a hinged "knuckle" that folds . | Rigid, telescopic boom that extends linearly . |
| Lifting Mechanism | Hydraulic cylinders control the boom sections for precise load handling . | Cable rope winch system lifts loads straight up and down . |
| Storage Footprint | Folds compactly, saving valuable deck space . | Boom cannot fold; requires significant horizontal space when stored . |
| Operational Strength | Versatility, precision maneuvering, and ability to work in confined spaces . | High-capacity vertical lifting, greater outreach, and simple operation . |
| Typical Applications | Offshore supply, aquaculture, subsea construction, wind farm maintenance . | Ship-to-shore bulk cargo, heavy equipment handling, quayside lifting. |
Diverse Applications Across the Marine Industry
The versatility of the knuckle boom crane has led to its adoption across a wide spectrum of maritime activities:

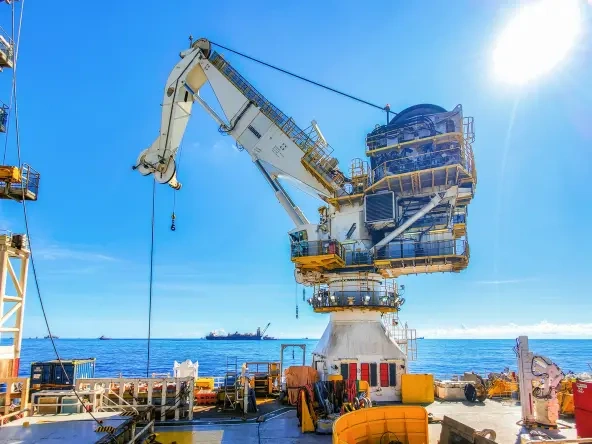

Offshore Energy Support: Modern platform supply vessels (PSVs) and construction support vessels rely heavily on these cranes. For instance, Huisman is currently delivering 100mt capacity knuckle boom cranes to vessels destined for the Brazilian market, capable of operating at depths up to 3,000 meters . They are essential for subsea construction, ROV deployment, and equipment recovery .
Aquaculture: The fishing and fish farming industries utilize heavy-duty foldable cranes for net handling, feeding operations, and service duties. The new PFM 1500 crane, for example, is specifically designed to meet the growing operational demands of aquaculture with a maximum outreach of 26.7 meters .
Research and Government Vessels: These cranes are found on icebreakers, research vessels, and buoy-tending boats where precise material handling is required in remote and often hostile environments .
Oil Spill Recovery and Diving Support: Their maneuverability makes them perfect for deploying skimmers during oil pollution recovery or handling diving equipment for support craft .

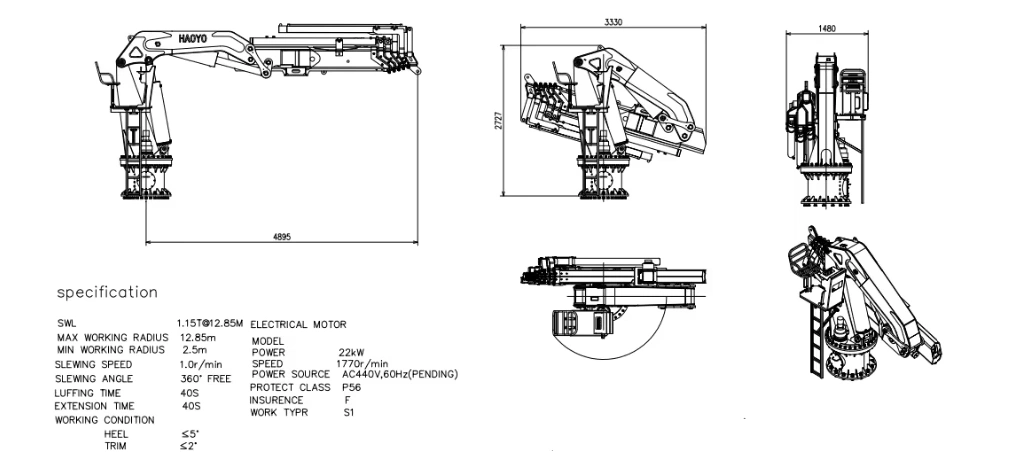

Knuckle Boom Marine/Offshore Crane – Key Specifications
| Rated Capacity (SWL) | 0.5t-70t |
| Max Working Radius | 5–25 m (model dependent) |
| Lifting Speed | 0.6–1 m/min (variable by model) |
| Lifting Height | 30–40 m / 2000–6000 mm (model dependent) |
| Swing Speed | 0.46–15 r/min (model dependent) |
| Rotation Range | 360° |
| Power Supply | 380V, 50Hz, 3-phase (or other standards) |
| Working Temperature | -20°C to 42°C |
| Control Mode | Pendant push button or remote control |
| Duty Class | A3 |
Corrosion Resistance and Durability
Operating in a saltwater environment is brutal on machinery. Marine knuckle boom cranes are built to withstand these conditions through rigorous design standards. Manufacturers often adhere to stringent standards like NORSOK M-501 for surface protection .
Key durability features typically include:
Galvanized components and waterproof fittings .
Nickel/Chrome-plated boom cylinders to resist rust .
Stainless steel pins and grease nipples (often AISI 316L) .
Special marine coatings to provide maximum corrosion resistance .
Maintenance & Safety Considerations
Operational safety and uptime depend on rigorous inspection and maintenance protocols:
1. Load Charts
Operators must always consult the crane’s load chart to ensure lifting within capacity limits at specific boom angles and extensions.
2. Operator Certification
Many regions require licensed or certified operators. Proper training reduces the risk of accidents and equipment damage.
3. Daily Safety Checks
Routine checks of hydraulic lines, boom integrity, and control systems are essential. Lubrication, fluid levels, and mechanical joints should be inspected daily.
4. Hydraulic System Care
Contaminants in the hydraulic fluid can degrade performance. Regular filtration and oil replacement are critical for long-term efficiency.
Conclusion
The marine knuckle boom crane is far more than just a hook on a stick. It is a sophisticated, articulated piece of engineering that solves the complex spatial and environmental challenges of working at sea. From its space-saving foldable design to its high-tech active heave compensation systems, it remains an indispensable tool for modern maritime operations.
