The European Hoist Trolley is a compact, high-performance material handling component designed for integration with overhead crane systems. Engineered to meet stringent European standards (such as FEM/ISO), it features an optimized low-headroom profile that maximizes lifting height within existing facilities. The trolley typically incorporates a precision-engineered wire rope hoist, durable gearbox, and variable frequency drive (VFD) for smooth acceleration and precise load control. Its modular construction allows for easy maintenance, while advanced safety features include overload protection, limit switches, and emergency braking.

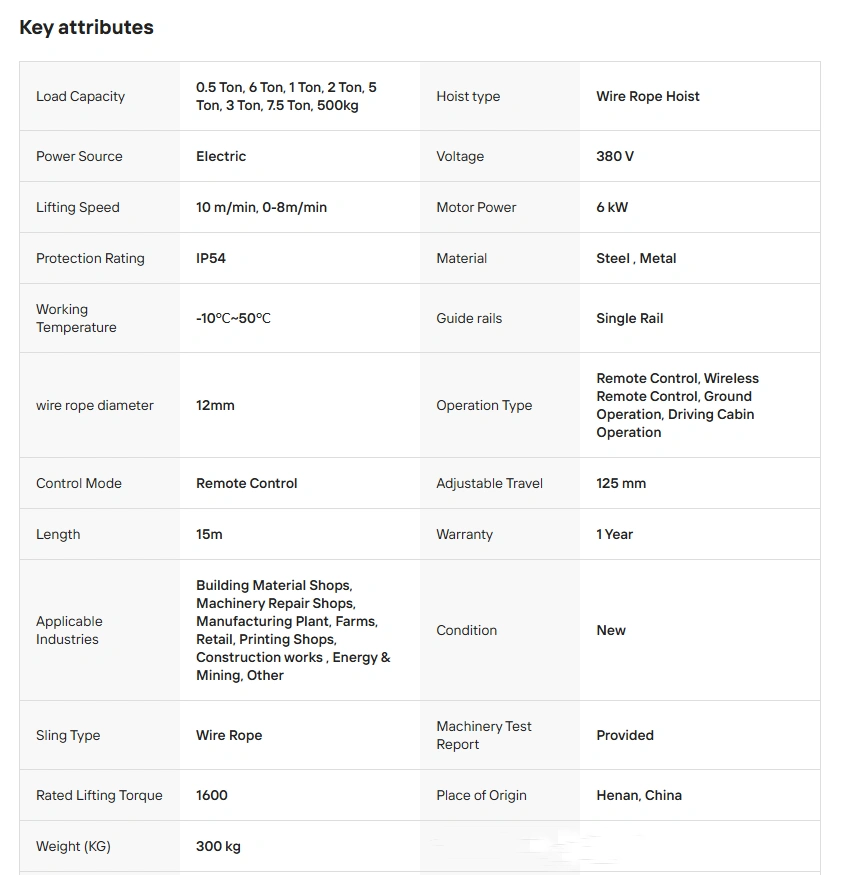

Key attributes

Main Feature:

1.Overhead traveling on the steel structure.normally in workshop.heavy working duty from A5-A8

2. Light self weight, could save steel structure cost.

3.Lifting and traveling is very accurate.

4.VVF/ frequency inverter control, 3-5 speeds to operate, stable to lift and running.

5.Six direction action, to make sure the enough wide working area.

6.Full safety system as follows:

Two Lifting Mechanisms:
1.European Electric Hoist

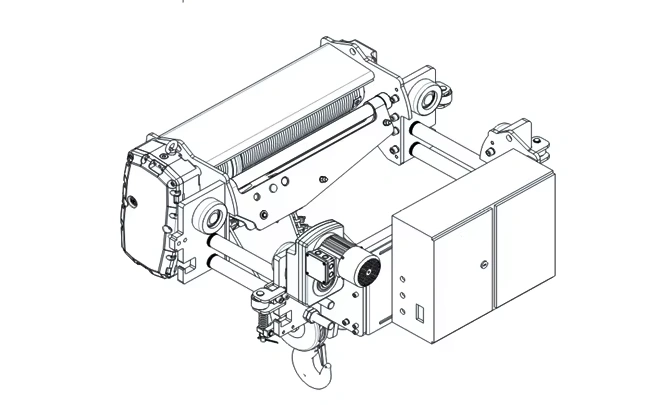

2.European Hoisting Trolley

Details:

Lighter self weight

Larger working area

Anti-swing systems

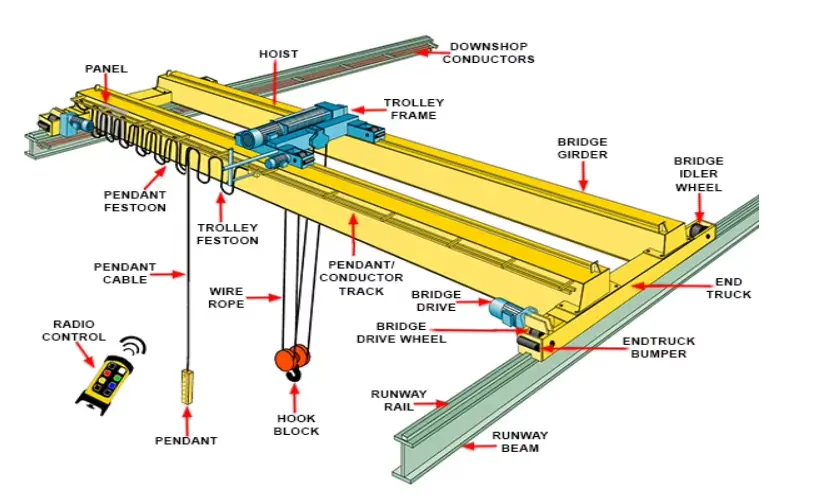

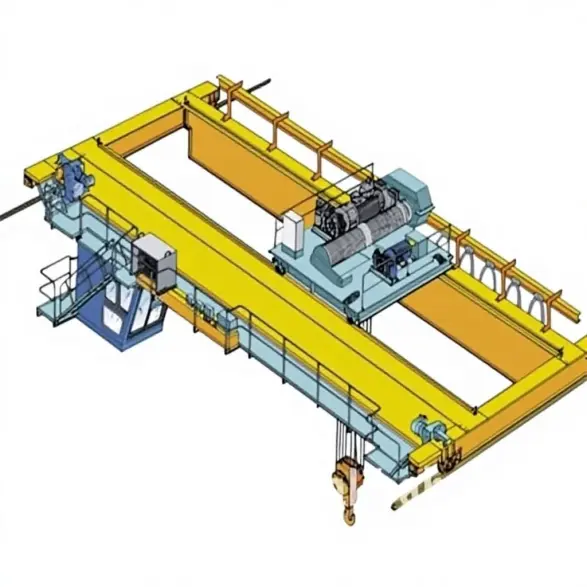

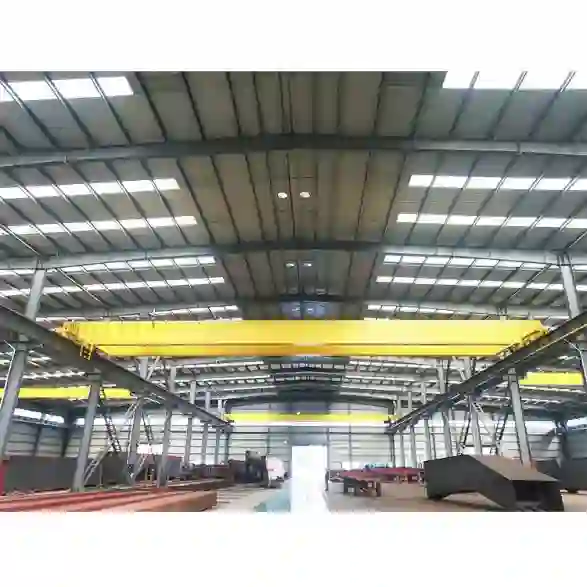

Crane bridge mainly consists of main beam, end carriages, walkway, trolley conductor bracket, crab rail, service platform, ladder and handrail etc. components. Crane bridge adopts double beam structure, has enough strength, rigidity and whole stability.

Self weight lower 15-20%

Lower price

Wheel pressure lower 15~30%

Height lower 20%~30%

Sketch Drawing

Specification

FAQ:

Q1: What is a European hoist trolley?
A: A European hoist trolley is a compact, high-efficiency lifting unit designed to traverse along the bridge girder of an overhead crane. It features a low-headroom design, precision engineering, and is manufactured according to European standards (such as FEM, ISO, or DIN) for enhanced performance, safety, and durability.

Q2: What are the main advantages of a European-style hoist trolley compared to traditional designs?
A: The key advantages include:
Low headroom: Allows for maximum lifting height in facilities with limited overhead space.
Compact design: Reduces the overall size and weight of the crane, lowering building costs.
Smooth operation: Often equipped with variable frequency drives (VFD) for precise load control and reduced sway.
High efficiency: Optimized gearboxes and motors reduce energy consumption.
Enhanced safety: Incorporates advanced safety features like overload protection and multiple braking systems.

Q3: What lifting capacities are available for European hoist trolleys?
A: European hoist trolleys are typically available in a wide range of capacities, generally from 1 ton to over 100 tons, depending on the manufacturer and specific model. Custom configurations can be engineered for specialized applications.

Q4: What are the standard lifting heights and speeds?
A: Lifting heights and speeds are customizable based on application requirements. Standard lifting heights can range from 3 meters to over 30 meters, while lifting speeds typically vary from 0.8 m/min to 16 m/min (or higher), often with dual-speed or VFD-controlled options for precise handling.

Application Scenarios:
Automotive assembly lines: Precisely positioning engines, transmissions, and body components during vehicle manufacturing.
Steel service centers: Handling coils, sheets, and bars with high cycle frequencies and heavy loads.
Warehouse and logistics: Moving palletized goods, machinery, and bulk items in distribution centers.
Maintenance and repair facilities: Lifting and transporting heavy equipment, motors, and machine parts in workshops.
Power generation plants: Servicing turbines, generators, and other heavy components during overhaul.
Shipbuilding: Handling ship sections, machinery, and supplies in fabrication halls and dry docks.
Aerospace manufacturing: Positioning aircraft parts and assemblies with high precision.
Foundries and forges: Transporting molten metal ladles, dies, and forged pieces in high-temperature environments.
Paper and pulp industry: Moving heavy rolls and machinery in production lines.
