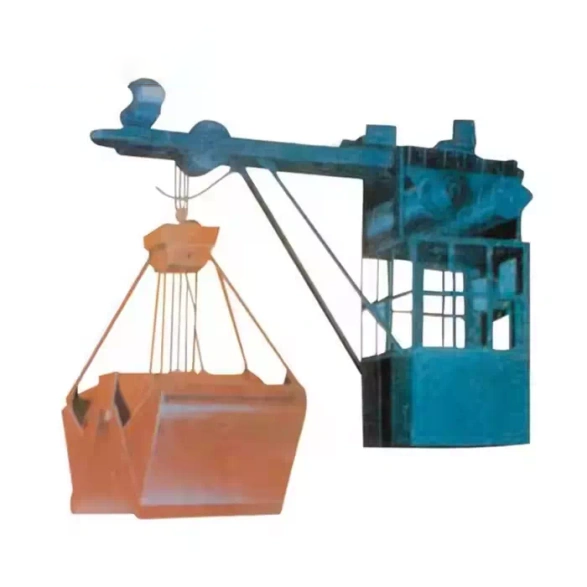

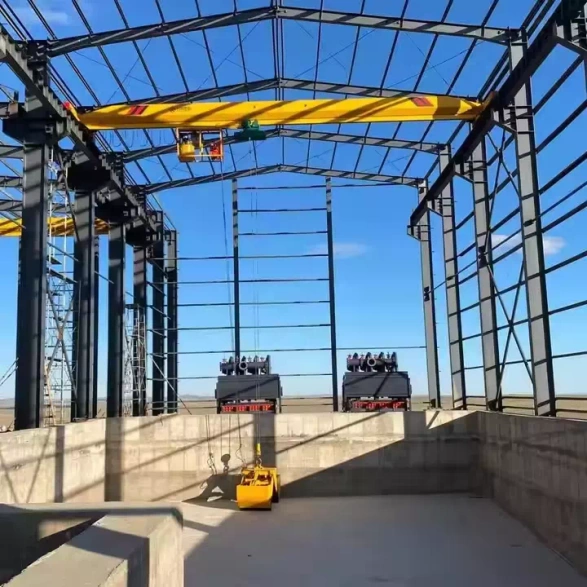

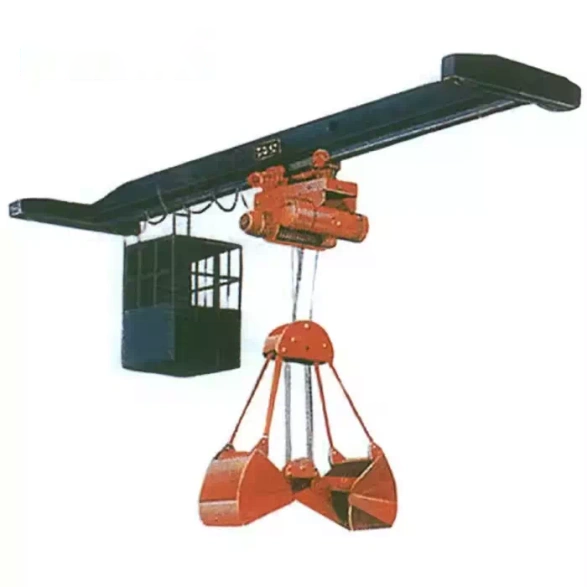

Single Girder Overhead Crane with Grab Bucket
Authentication mark:
For customized products, please fill out information and submit the form.
Capacity:
3t, 5t,8t(customizable)
Lifting Height:
16m (Customized)
Voltage/Hertz:
380V/50HZ
Working Class:
A5, A6,
Span:
7.5-31.5m (Customized)
Apply: This crane is widely used in bulk material handling industries such as power plants, steel mills, ports, and mining facilities
CONSULT
WHATSAPP
Introduction
Technical Data
Application
Features
Certificate
Inquiry
PRODUCT INTRODUCTION

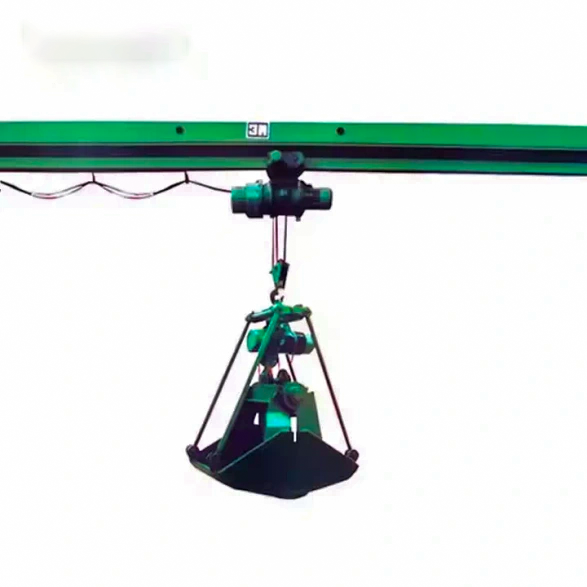

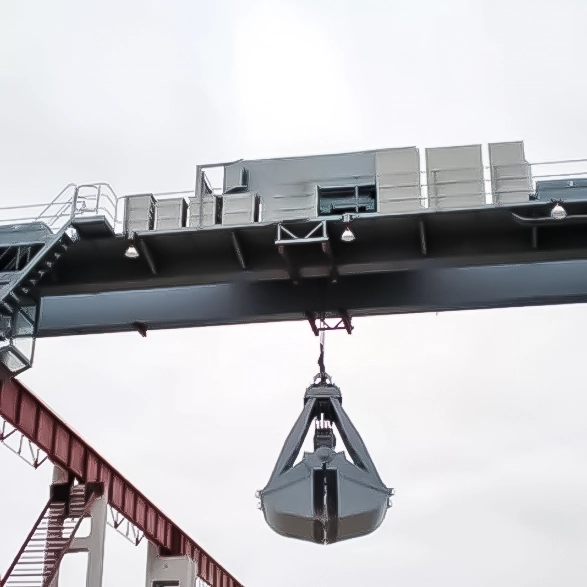

The Single Girder Grab Overhead Crane is a specialized material handling solution designed for lifting and transporting loose, bulk, or non-free-flowing materials using a grab bucket attachment. Unlike standard hook-lifting cranes, this crane is equipped with a motor-driven clamshell or orange-peel grab that opens and closes to scoop, carry, and discharge bulk cargo such as coal, ore, sand, scrap metal, or waste. Its single girder design offers a lightweight, cost-effective, and space-saving alternative to double girder grab cranes, making it ideal for lighter-duty bulk handling applications.
Looking for overhead crane suppliers offering factory direct prices? We provide 1-50 ton overhead crane solutions, including 5 ton, 10 ton, and 20 ton models. Choose from single girder (1-30 ton) or double girder (30-500 ton) designs, with electric overhead crane options for varied industrial applications. Our ISO & CE certified cranes are manufactured in China and trusted worldwide. Whether you need a custom overhead crane or a standard unit, get a free crane quote online today. As a leading overhead crane manufacturer, we offer custom crane solutions for your specific lifting needs. Overhead crane for sale – contact us for a free consultation or request a catalog now.
TECHNICAL DATA
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Product Name | Single Girder Overhead Crane with Grab Bucket | Lifting Capacity | 1 – 35 ton |
| Span Length | 4.5 – 28.5 m | Lifting Height | 6 – 30 m |
| Work Duty Class | A3 – A5 | Lifting Speed | 7 – 16 m/min |
| Trolley Travel Speed | 20 m/min | Grab Volume | 0.5 – 2.5 m³ |
| Core Components | Motor, electric system, hoist (2 units), grab bucket, end beam | Control Method | Pendant control / Wireless remote control |
| Power Supply | 220V – 660V / 3P / 50-60Hz (customizable) | Working Temperature | -20°C to +40°C |
| Protection Class | IP44 – IP55 | Warranty | 1 Year |
| Machinery Test Report | Provided | Video Outgoing Inspection | Provided |
| Place of Origin | Henan, China | Painting Color | Customized |
APPLICATION

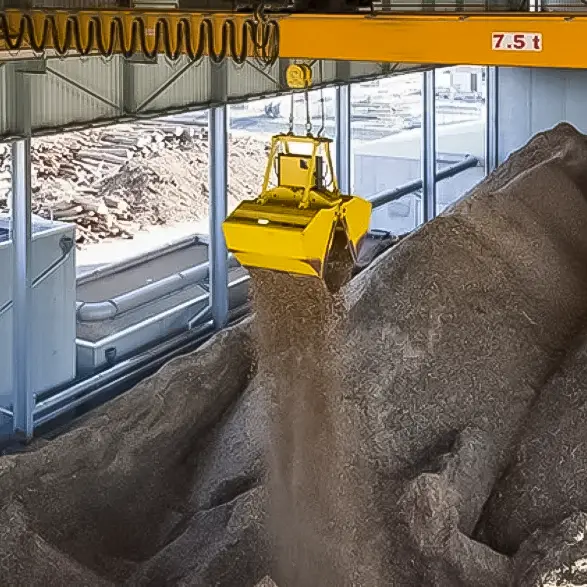

1.This crane is extensively used in coal handling yards of thermal power plants and steel mills, where it scoops coal or coke from stockpiles and delivers them to crushers, furnaces, or conveyor feed hoppers with high cycle efficiency.
2.It is essential in port terminals and inland river docks for unloading bulk cargo vessels, including iron ore, bauxite, grain, and fertilizer, transferring materials from ship holds to shore-side storage or directly into trucks.
3.The crane is widely applied in scrap recycling centers and metal smelting plants, using heavy-duty grabs to handle shredded scrap, turnings, pig iron, and copper cathodes for furnace charging or baling press feeding.

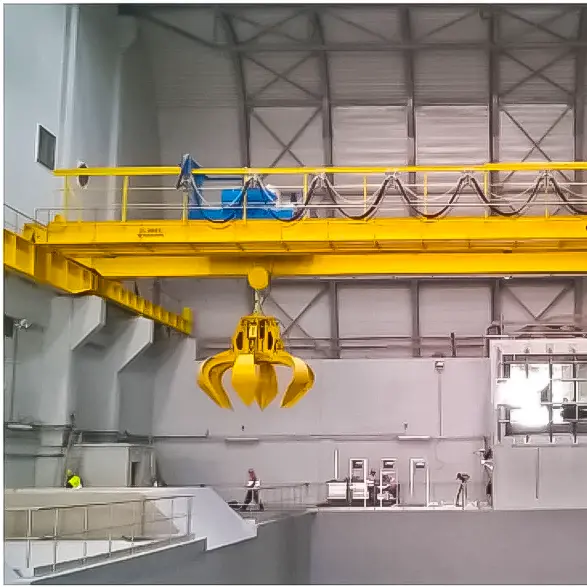

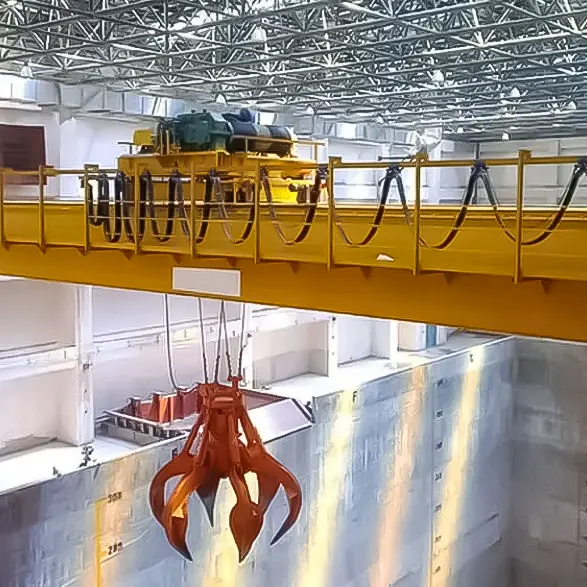

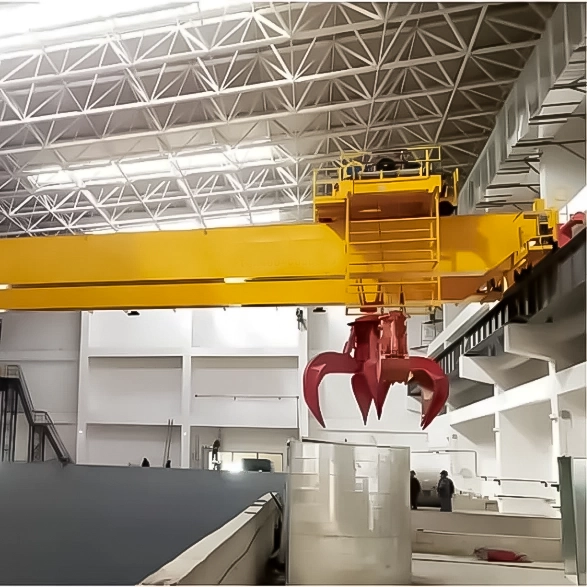

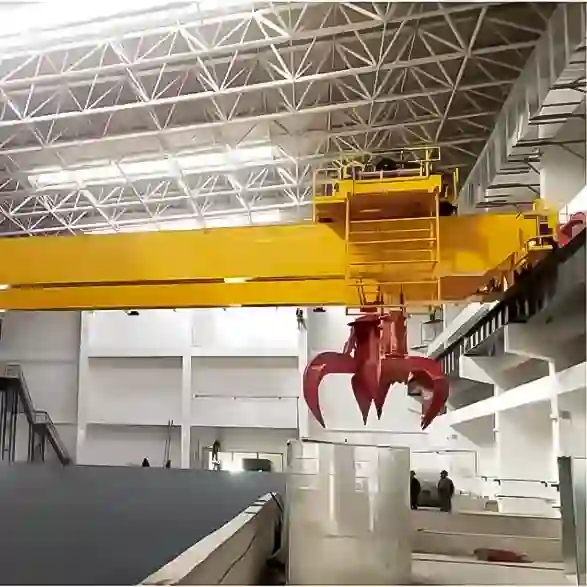

4.In waste incineration and municipal solid waste treatment facilities, this crane mixes, transfers, and feeds waste into hoppers or combustion chambers, with the grab bucket designed to resist corrosion and abrasion from heterogeneous refuse.
5.Additional applications include cement plants, chemical fertilizer factories, and glass manufacturing facilities, where the crane handles raw materials such as clinker, gypsum, phosphate, pet coke, sand, and soda ash with minimal spillage and dust generation.
2.It is essential in port terminals and inland river docks for unloading bulk cargo vessels, including iron ore, bauxite, grain, and fertilizer, transferring materials from ship holds to shore-side storage or directly into trucks.
3.The crane is widely applied in scrap recycling centers and metal smelting plants, using heavy-duty grabs to handle shredded scrap, turnings, pig iron, and copper cathodes for furnace charging or baling press feeding.
4.In waste incineration and municipal solid waste treatment facilities, this crane mixes, transfers, and feeds waste into hoppers or combustion chambers, with the grab bucket designed to resist corrosion and abrasion from heterogeneous refuse.
5.Additional applications include cement plants, chemical fertilizer factories, and glass manufacturing facilities, where the crane handles raw materials such as clinker, gypsum, phosphate, pet coke, sand, and soda ash with minimal spillage and dust generation.
FEATURES
1
Dedicated grab hoist mechanism – features two rope drums (closing and supporting) or a motor-driven opening/closing system for positive grab bucket control without slip or premature opening.
2
Single girder lightweight design – reduces dead weight, wheel load, and building structural requirements, offering a cost-effective solution for lighter bulk handling duties (typically 1–10 tons grab capacity).
3
Heavily reinforced grab bucket – available in clamshell (for loose materials)
4
Anti-slew and anti-swing control – optional electric or mechanical features
5
Dust-proof and corrosion-resistant options – includes sealed motors, IP-rated electrical enclosures, and stainless steel or coated components for harsh environments like waste handling or chemical plants.
