What is an electric wire rope hoist and what are its main applications?

An electric wire rope hoist is a lifting device that uses a wire rope wound around a drum, driven by an electric motor through a gearbox, to raise and lower heavy loads vertically, and its main applications include material handling in factories, warehouses, workshops, and construction sites, lifting and positioning components on assembly lines, loading and unloading trucks and shipping containers, supporting maintenance and repair operations in industrial facilities, and serving as the lifting mechanism for overhead bridge cranes, gantry cranes, and monorail systems, making it one of the most versatile and widely used lifting solutions across virtually all industries requiring reliable and efficient vertical material handling.

What is the difference between an electric wire rope hoist and an electric chain hoist?

The primary difference between an electric wire rope hoist and an electric chain hoist lies in the lifting medium and the resulting performance characteristics, as the wire rope hoist uses a steel wire rope wound on a drum and is generally capable of higher lifting capacities (typically from 1 ton up to 100 tons or more), higher lifting speeds, greater lifting heights, and more frequent duty cycles, making it suitable for heavy-duty industrial applications, while the chain hoist uses a load chain and is typically lighter, more compact, more portable, and more economical for lower capacities (usually up to 5 tons), with slower lifting speeds and less frequent operation, making it better suited for light to medium-duty applications, maintenance workshops, and occasional lifting tasks where cost and portability are more important than high performance and heavy capacity.

What safety features are essential for an electric wire rope hoist?

Essential safety features for an electric wire rope hoist include an overload protection device or electronic load limiter that prevents lifting beyond the hoist's rated capacity, upper and lower limit switches that stop the hoist at the safe extremes of travel to prevent over-hoisting or over-lowering, a slack rope detection system that stops the hoist if the wire rope loses tension to prevent rope damage or tangling, a fail-safe electromagnetic brake that automatically engages when power is lost to hold the load securely, a thermal overload protection system that shuts down the motor if it exceeds safe operating temperatures, a rope guide or rope keeper that ensures proper spooling of the wire rope onto the drum to prevent jamming or uneven winding, and an emergency stop button for immediate shutdown in critical situations, all working together to ensure safe and reliable lifting operations in demanding industrial environments.

Premium Crane Wire Ropes

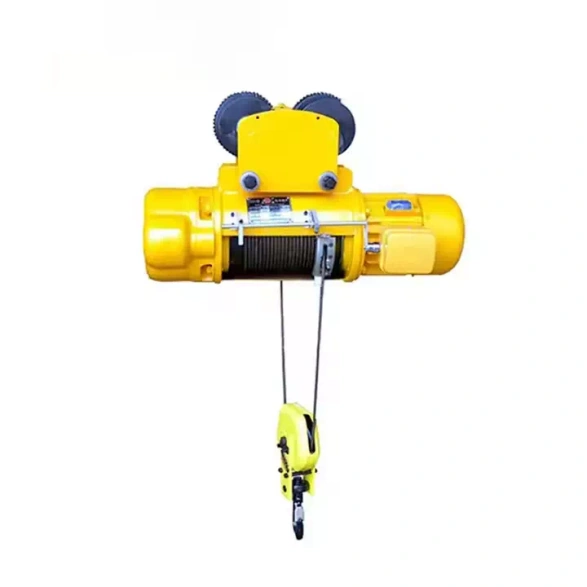

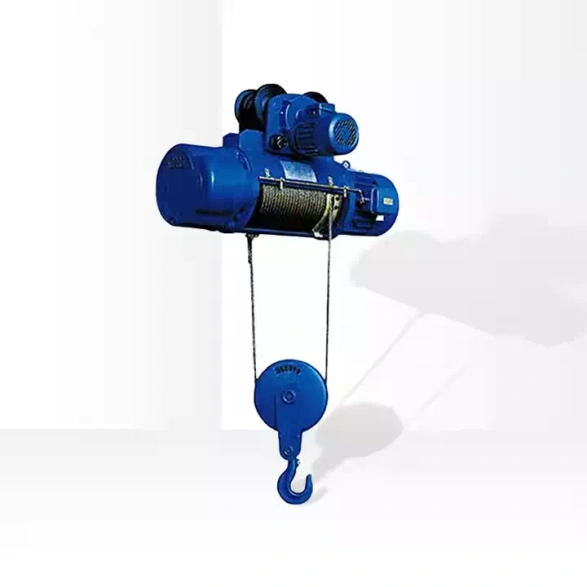

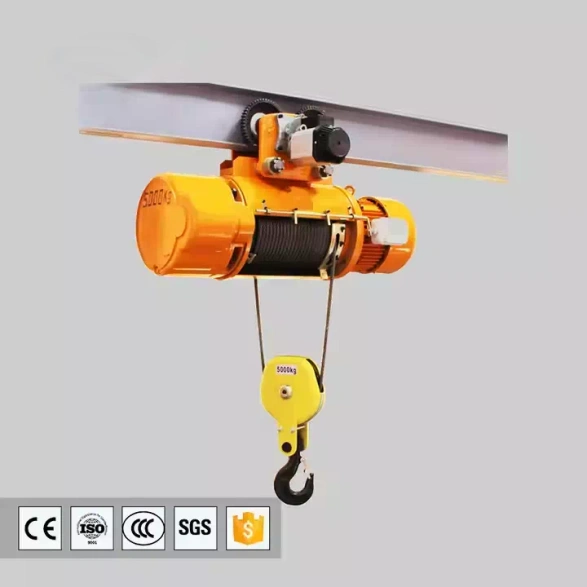

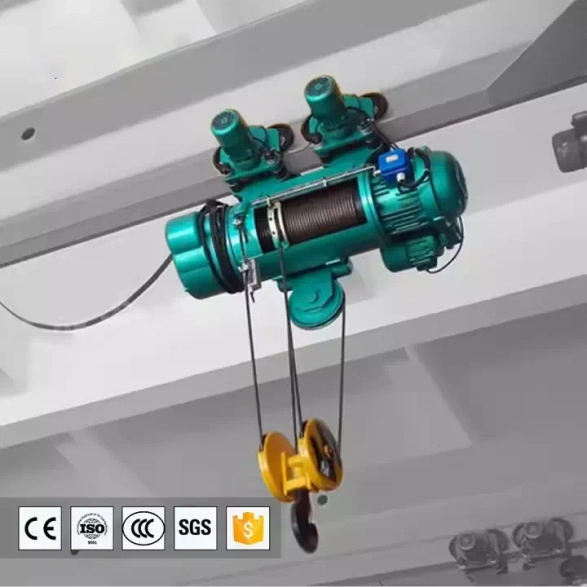

Electric Wire Rope Hoist

Authentication mark:

For customized products, please fill out information and submit the form.

Capacity:

(customizable)

Lifting Height:

(customizable)

Voltage/Hertz:

(customizable)

Working Class:

A4, A5

Span:

(customizable)

Apply: Construction & Infrastructure, Mining & Quarrying, Shipping & Port Logistics

Product manual

E-Mail

Introduction

Technical Data

Application

Features

Certificate

Inquiry

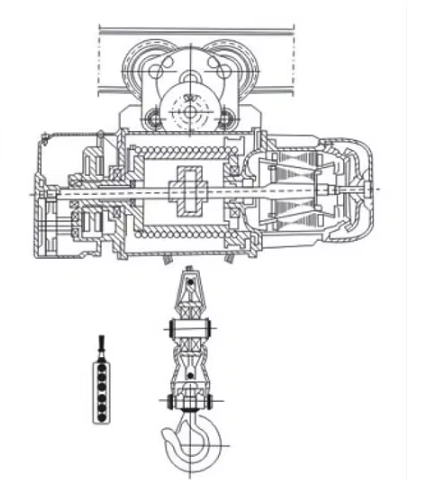

PRODUCT INTRODUCTION

Wire Rope Hoist is a rugged, high‑performance lifting device designed for heavy‑duty material handling in industrial environments. Unlike chain hoists, which use a load chain, wire rope hoists employ a steel wire rope wound around a grooved drum, providing higher lifting capacities, longer lift heights, and greater durability for demanding applications. These hoists are widely used in overhead cranes, gantry cranes, monorails, and stationary lifting points across manufacturing, steel processing, shipbuilding, construction, and energy sectors.

TECHNICAL DATA

Parameter	Specification	Parameter	Specification
Load Capacity	1-50T(customizable)	Hoist type	Wire Rope Hoist
Power Source	Electric	Voltage	(customizable)
Lifting Speed	10 m/min, 0-8m/min	Motor Power	6 kW
Protection Rating	IP54	Material	Steel, Metal
Working Temperature	-10°C~50°C	Guide rails	Single Rail
Wire rope diameter	12mm	Operation Type	Remote Control, Wireless Remote Control, Ground Operation
Control Mode	Remote Control	Length	15m
Warranty	1 Year	Machinery Test Report	Provided

RELATED PRODUCTS

European Hoist Trolley

Apply: Manufacturing and fabrication industries、Automotive assembly plants、Warehousing and logistics centers、Steel and metal processing facilities、Shipbuilding and repair yards

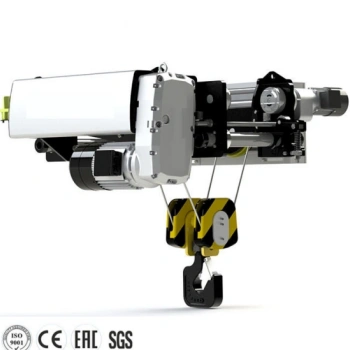

European Hoists

Apply: Manufacturing and Assembly Lines, Warehousing and Logistics, Construction and Infrastructure, Metallurgy and Metal Processing, Energy and Heavy Industries, Aerospace and Defense

APPLICATION

1. Overhead Crane Systems (Single & Double Girder) Heavy Manufacturing: Lifting steel plates, structural beams, machinery components, and fabricated assemblies.Warehouse & Logistics: Moving heavy pallets, containers, and bulk materials in high‑bay warehouses.Maintenance Shops: Servicing large motors, pumps, gearboxes, and production equipment.

2. Gantry & Semi‑Gantry Cranes Outdoor Storage Yards: Lifting pipes, steel bars, concrete elements, and construction materials.Port Terminals: Handling containers (with spreader attachment) and breakbulk cargo.Rail Freight Yards: Loading\/unloading heavy components onto railcars.

3. Monorail & Underhung Systems Assembly Lines: Transporting workpieces through sequential assembly stations.Paint & Coating Lines: Carrying parts through spray booths, drying ovens, and cooling zones.Food Processing: Lifting stainless steel vessels, mixing bowls, and ingredient bins (with washdown versions).

4. Stationary & Fixed Lifting Points Engine Hoist: Lifting engines, transmissions, and axles in automotive repair shops.Loading Docks: Raising heavy goods onto trucks or receiving platforms.Warehouse Mezzanines: Lifting materials from ground floor to elevated storage.

5. Steel Service Centers Coil & Plate Handling: Lifting steel coils (up to 30 tons) from storage racks to slitting lines.Sheet Stacking: Moving steel sheets and blanks for cutting, stacking, and palletizing.Scrap Management: Handling scrap bins and heavy waste containers.

6. Foundries & Forging Shops Hot Metal Handling: Lifting ladles, crucibles, and hot ingots with heat‑resistant ropes and protective covers.Mold & Core Setting: Positioning heavy sand molds and core assemblies.Die Changing: Lifting forging dies weighing several tons into presses.

Electric Wire Rope Hoist

Introduction

Technical Data

Application

Features

Certificate

Inquiry

PRODUCT INTRODUCTION

TECHNICAL DATA

RELATED PRODUCTS

APPLICATION

FEATURES

High Lifting Capacity: Typically 0.5 – 100+ tons, with single or double rope reeving for heavier loads.

Long Lift Height: Wire rope allows much longer lift heights than chain hoists (up to 100 meters or more).

Compact Drum Design: Optimized rope layering and drum grooves for smooth operation and long rope life.

Frequency‑Controlled Drives: Precise speed control, reduced swing, and energy savings (optional).

Dual Braking System: Electromechanical brake plus mechanical load brake for fail‑safe operation.

Overload Protection: Electronic or mechanical sensor prevents lifting beyond rated capacity.

CERTIFICATE
