What is a Single Girder European Gantry Crane?

A Single Girder European Gantry Crane is a modern material handling solution that combines the lightweight, efficient design principles of European engineering with the mobility and flexibility of a gantry crane. It features a single main horizontal beam supported by two legs that travel on floor-level rails or wheels, with a hoist trolley running along the underside of the girder. What distinguishes European-style cranes from their traditional counterparts is their emphasis on optimized design, using higher-strength steels and advanced engineering to achieve a lighter overall structure while maintaining impressive lifting capacity and operational performance. This design approach results in reduced dead weight, lower wheel loads, smaller motor requirements, and ultimately, reduced energy consumption and operating costs, making it an increasingly popular choice for facilities looking to modernize their material handling operations.

What lifting capacities and specifications are typical for this crane?

Single Girder European Gantry Cranes are available in a variety of capacities to suit different applications, with standard models typically ranging from 1 ton up to 20 tons, making them ideal for light to medium-duty lifting operations. The span of the crane can be customized to fit the facility layout, generally ranging from 6 meters to 30 meters or more, while lifting heights are similarly flexible and can be tailored to meet vertical clearance requirements. Compared to traditional single girder cranes, European designs often achieve greater lifting heights within the same overall building height due to their more compact hoist and trolley configurations. The hoist itself is typically an electric wire rope hoist with variable speed control, providing smooth acceleration and precise load positioning.

What makes European gantry cranes different from traditional designs?

The differences between European and traditional gantry cranes are rooted in their design philosophy and engineering approach. European cranes are designed with a focus on optimization, using high-tensile steels and finite element analysis to minimize structural weight while maximizing strength and rigidity. This results in a crane that is significantly lighter than its traditional counterpart for the same capacity, which in turn reduces wheel loads and allows for smaller, more efficient motors and gearboxes. The hoists used in European cranes are typically more compact and feature a lower headroom, which means they can achieve higher lifting heights in buildings with limited clearances. Additional features often include variable frequency drives for smooth and precise control, improved ergonomics for operators, and advanced safety systems such as overload protection and anti-sway technology. These design choices translate into lower installation costs, reduced energy consumption, and lower maintenance requirements over the crane's lifespan.

Single Girder European Gantry Crane

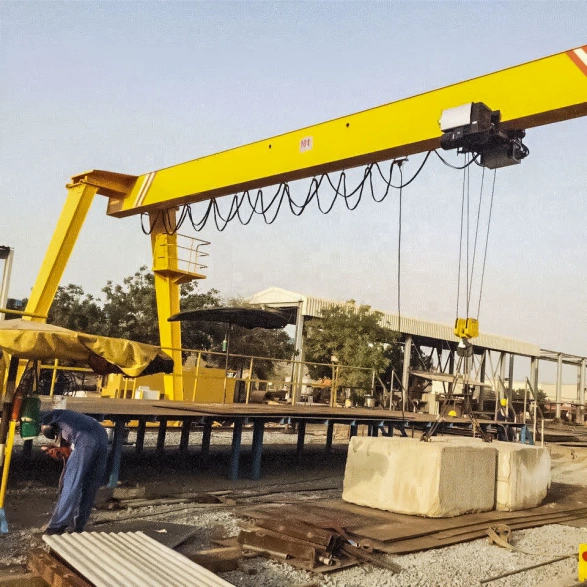

Single Girder European Gantry Crane3.webp

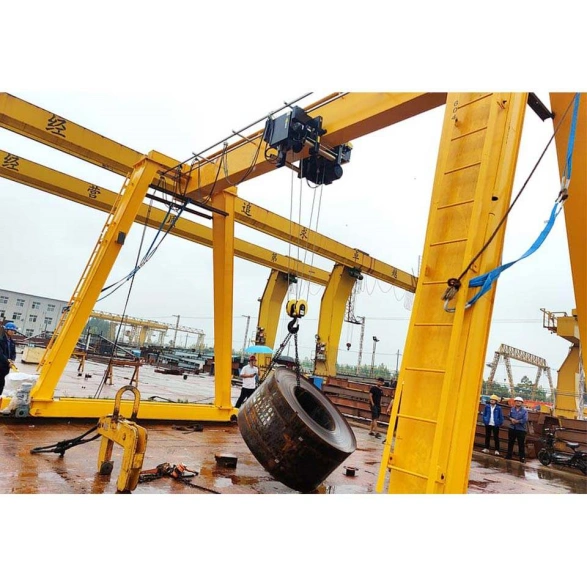

Single Girder European Gantry Crane4.webp

Authentication mark:

For customized products, please fill out information and submit the form.

Capacity:

20-50T (customizable)

Lifting Height:

3~12m (customizable)

Voltage/Hertz:

(customizable)

Working Class:

Span:

12-35m (customizable)

Apply: Single girder European gantry cranes are widely used in small to medium-sized workshops, warehouses, stockyards, and manufacturing facilities

Product manual

E-Mail

Introduction

Technical Data

Application

Features

Certificate

Inquiry

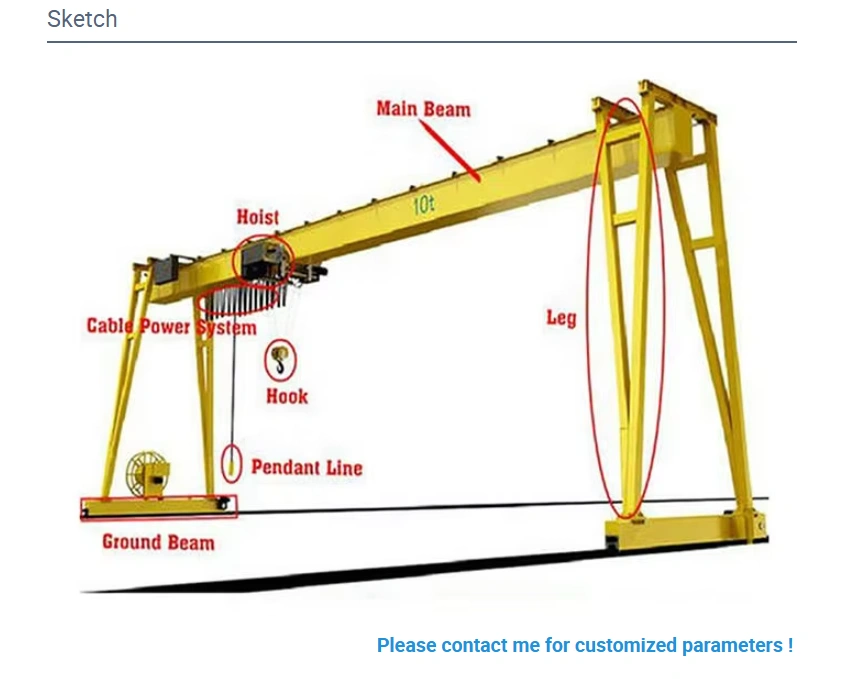

PRODUCT INTRODUCTION

The Single Girder European Gantry Crane is a modern, cost-effective material handling solution designed according to European FEM\/ISO standards, featuring a lightweight single box girder construction that balances strength, efficiency, and economy. Unlike traditional single girder gantry cranes that rely on oversized components, the European design incorporates a compact profile girder, optimized end carriages, and a low-headroom electric wire rope hoist that travels along the bottom flange of the main beam. The crane is equipped with inverter-controlled hoist and travel motions as standard, providing smooth acceleration, precise load positioning, and minimal load swing.

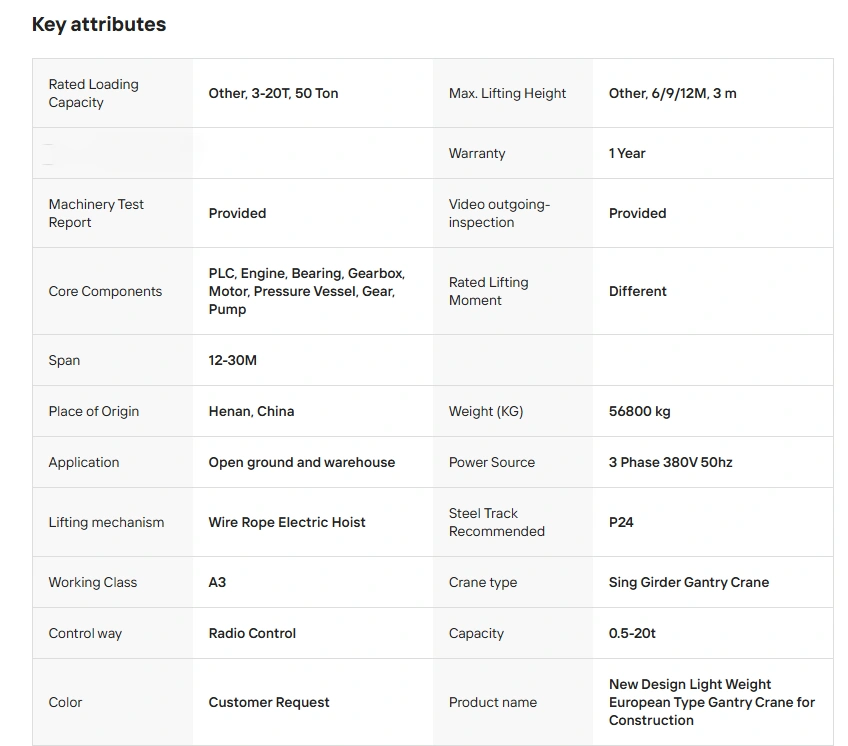

TECHNICAL DATA

Parameter	Specification	Parameter	Specification
Rated Loading Capacity	20-50Ton	Warranty	1 Year
Video outgoing-inspection	Provided	Rated Lifting Moment	Different
Place of Origin	Henan, China	Application	Open ground and warehouse
Working Class	A3	Control way	Radio Control
Color	Customer Request	Max. Lifting Height	Other, 3/9/12M
Machinery Test Report	Provided	Core Components	PLC, Engine, Bearing, Gearbox, Motor
Span	12-35M	Weight (KG)	56800 kg
Power Source	(customizable)	Capacity	0.5-50t

RELATED PRODUCTS

Single Girder Semi Gantry Crane

Apply: Semi-gantry cranes are mainly used in steel, forest products, intermodal, biomass/pellet, concrete and many other industries.

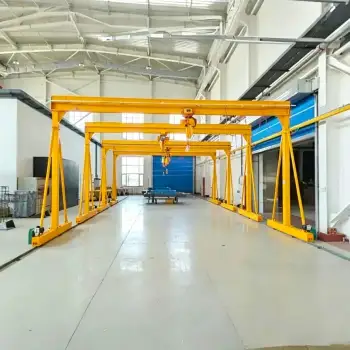

Mini Mobile Portable Gantry Crane

Apply: Workshop/Warehouse/Factory/Small equipment installation/goods and work piece handing. This crane is designed for transporting and positioning materials.

MH Typed Single Girder Gantry Crane

Apply: Warehouses and Shipping Centers,Factories and Workshops,Ports and Docks,Mines and Oil Sites,Farms and Grain Storage

APPLICATION

1.This crane is extensively used in small to medium-sized manufacturing workshops and fabrication facilities, handling raw materials, work-in-progress components, and finished goods with high precision and smooth inverter-controlled movements, while the lightweight design reduces wear on floor rails and foundations.

2.It is essential in warehouse and distribution centers, particularly for outdoor or semi-outdoor storage areas, where the crane lifts pallets, machinery, drums, and bulky items from ground storage to trucks or processing lines, with the low-headroom hoist maximizing lift height under existing canopies or roof structures.

3.The crane is widely applied in steel service centers and metal stockyards for light to medium-duty handling of bars, tubes, sheets, and structural sections, offering a cost-effective alternative to double girder cranes while still providing European-style precision and energy efficiency.

4.In recycling centers and scrap yards, this crane handles light scrap metal, bales, and non-ferrous materials with reliable performance, while the compact design allows operation in confined spaces where larger gantry cranes cannot fit.

FEATURES

European optimized single girder design – engineered according to FEM/ISO standards with a compact box girder and profile-optimized end carriages, reducing dead weight by 20–30% compared to traditional single girder gantry cranes.

Inverter controlled motions as standard – VFD (variable frequency drive) control for hoist lifting/lowering, trolley travel, and bridge travel, providing smooth acceleration, precise positioning, and minimal load swing without costly add-ons.

Low-headroom electric wire rope hoist – features a compact hoist with short hook approach dimension, maximizing vertical lift height and allowing operation under low ceilings, canopies, or outdoor obstructions.

Energy efficient operation – inverter drives reduce power consumption during start/stop operations, while the lightweight girder design requires less energy for bridge travel compared to conventional heavy gantry cranes.
