Q1: What is an Explosion Proof Single Girder Overhead Crane?

A: It is a single-girder electric overhead traveling (EOT) crane with all electrical and mechanical components certified to prevent ignition of flammable gases, vapors, or combustible dusts. It is used in hazardous environments such as chemical plants, oil refineries, grain handling facilities, paint shops, and pharmaceutical manufacturing areas.

Q2: What explosion protection methods are used on this crane?

A: Motors use flameproof enclosures (Ex d) that contain internal explosions. Control panels use pressurized (Ex p) or increased safety (Ex e) designs. Limit switches are encapsulated (Ex m) or intrinsically safe (Ex i). Wire ropes are anti-static, bumpers use non-sparking metals, and the entire crane is continuously grounded to dissipate static charge.

Q3: How do I select the correct explosion protection rating for my facility?

A: First, identify your hazardous zone: Zone 1 or 2 for gases, Zone 21 or 22 for dusts. Second, ensure the crane's T-Class is lower than the auto-ignition temperature of all substances present. T1 allows up to 450°C, T2 up to 300°C, T3 up to 200°C, T4 up to 135°C, T5 up to 100°C, and T6 up to 85°C – always choose the lowest applicable class for your environment.

Explosion Proof Single Girder Overhead Crane | Hazardous Area Lifting Solution

Explosion Proof Single Girder Overhead Cranes

Explosion Proof Single Girder Overhead Crane.webp

Explosion Proof Single Girder Overhead Cranes2.webp

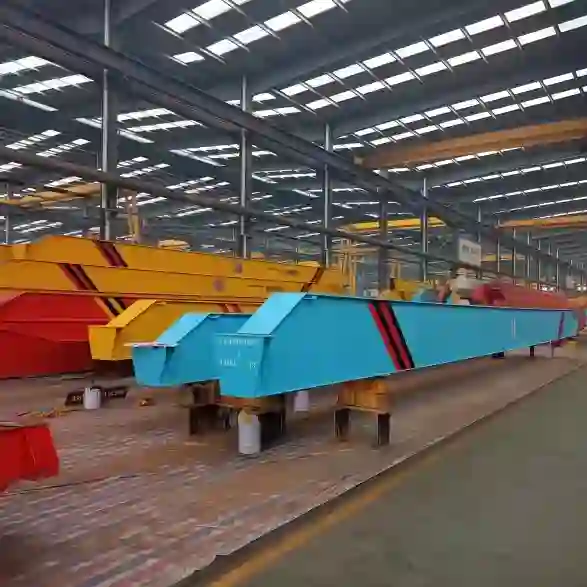

Explosion Proof Single Girder Overhead Cranes3.webp

Authentication mark:

For customized products, please fill out information and submit the form.

Capacity:

3,5,10,16t(customizable)

Lifting Height:

13m (customizable)

Voltage/Hertz:

(customizable)

Working Class:

A5, A6,

Span:

7.5-31.5m (customizable)

Apply: This crane is widely used in chemical and petrochemical plants where flammable gases, vapors, or dusts are present, ensuring safe material handling without ignition risks.

Product manual

E-Mail

Introduction

Technical Data

Application

Features

Certificate

Inquiry

PRODUCT INTRODUCTION

The Explosion Proof Single Girder Overhead Crane is a specialized lifting solution designed for hazardous environments where flammable gases, vapors, combustible dusts, or fibers may be present. Built with spark-resistant materials, sealed electrical components, and temperature-controlled mechanisms, this crane prevents any potential ignition source during operation. Its single girder design offers a lightweight, cost-effective, and space-saving alternative to double girder systems while complying with international explosion protection standards

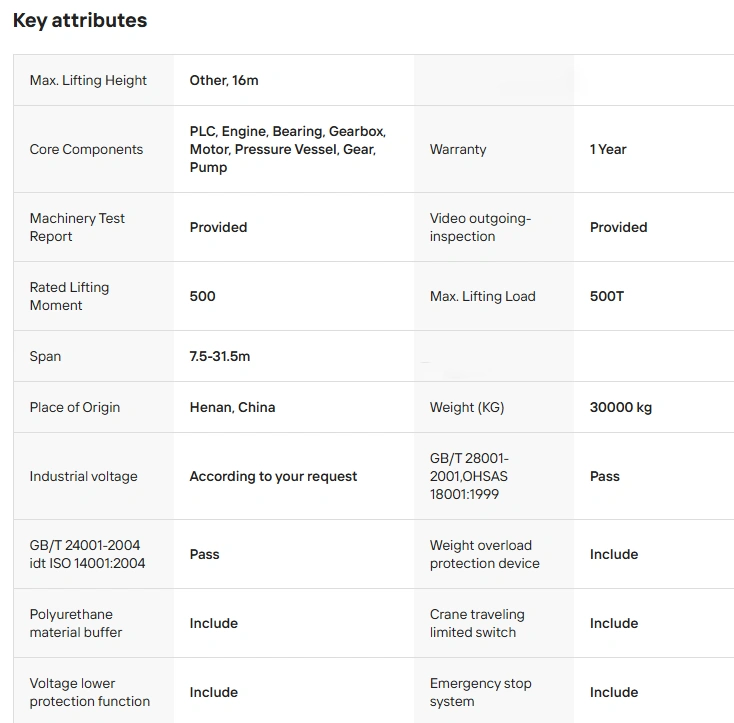

TECHNICAL DATA

Parameter	Specification	Parameter	Specification
Max. Lifting Height	Other, 16m	Core Components	PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump
Warranty	1 Year	Machinery Test Report	Provided
Video Outgoing Inspection	Provided	Rated Lifting Moment	500
Max. Lifting Load	500T	Span	7.5-31.5m
Place of Origin	Henan, China	Weight (KG)	30000 kg
Industrial Voltage	According to your request	GB/T 28001-2001, OHSAS 18001:1999	Pass
GB/T 24001-2004 idt ISO 14001:2004	Pass	Weight Overload Protection Device	Include
Polyurethane Material Buffer	Include	Crane Traveling Limited Switch	Include
Voltage Lower Protection Function	Include	Emergency Stop System	Include

RELATED PRODUCTS

QC Manget Overhead Crane

Apply: Steel industry, Ports and terminals, Heavy machinery manufacturing, Warehouse and logistics

QE Model Double Trolley Double Beam Overhead Crane

Apply: Steel Mills (Metal Melting & Scrap Yards), Heavy Machinery Manufacturing, Power Plants (Turbine Halls & Pump Rooms)

Double Girder Overhead Crane with Grab Bucket

Apply: Single girder grab overhead travelling crane is mainly used to grab sand, scrap iron, rubbish, coal some bulk materials, or solid some materials.

APPLICATION

1.This crane is widely used in chemical and petrochemical plants where flammable liquids, gases, or vapors are handled, ensuring safe lifting of raw materials, reactors, and drums without risk of ignition.

2.It is essential for oil refineries and gas processing facilities, providing reliable overhead lifting for pump maintenance, valve replacement, and equipment installation in hazardous classified areas.

3.The crane is also critical in paint and coating workshops, where airborne solvent vapors create explosive atmospheres, allowing safe movement of pigment bins, mixing tanks, and finished product containers.

4.In pharmaceutical and fine chemical manufacturing, this crane operates safely in alcohol-based or solvent-rich production zones, handling intermediate chemical drums and reactor components without generating sparks.

FEATURES

Explosion proof certified construction – complies with ATEX, IECEx, or NEC standards

Spark-resistant components – includes copper-aluminum alloy friction parts, brass or stainless steel hardware, and anti-static chain or rope to eliminate ignition sources.

Sealed electrical system – all motors, control panels, limit switches, and pendants are fully enclosed in explosion proof enclosures to contain any internal arcing.

Temperature class rating – limits maximum surface temperature below the auto-ignition point of surrounding hazardous substances (e.g., T4 or T5 rating).
