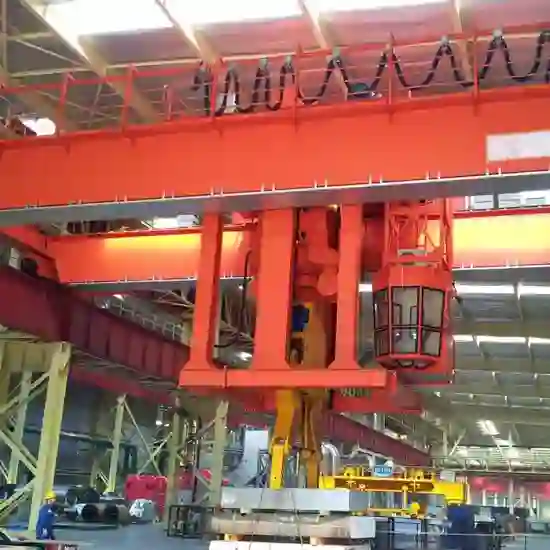

Clamps Overhead Crane
Authentication mark:
For customized products, please fill out information and submit the form.
Capacity:
20,35,50,65,100t
Lifting Height:
12-30m
Voltage/Hertz:
220V, Customized
Working Class:
A6, A7, A8
Span:
10.5-40m
Apply: This Slab Clamp Bridge Crane ensures efficiency, safety, and adaptability in demanding industrial environments, making it the ideal solution for steel mills, ports, and heavy material handling facilities.
CONSULT
WHATSAPP
Introduction
Technical Data
Application
Features
Certificate
Inquiry
PRODUCT INTRODUCTION

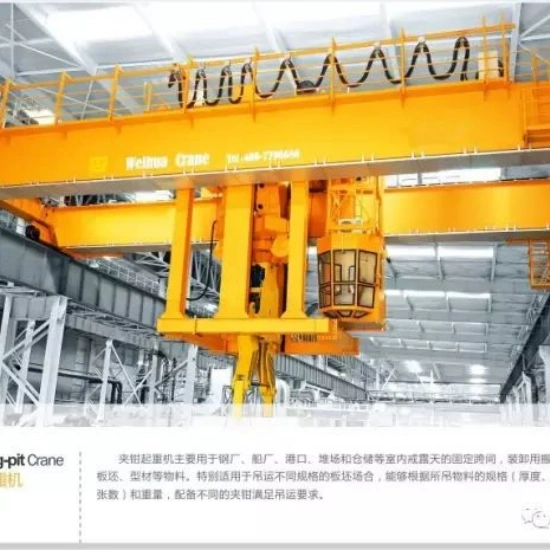

The Clamps Overhead Crane is a specialized material handling system designed for lifting, transporting, and positioning loads that cannot be safely or efficiently handled by conventional hooks, magnets, or grabs. Equipped with mechanical, hydraulic, or pneumatic clamping attachments, this crane provides a secure, positive grip on a wide variety of materials—ranging from steel coils and plates to paper rolls, drums, bales, concrete products, and irregularly shaped components.

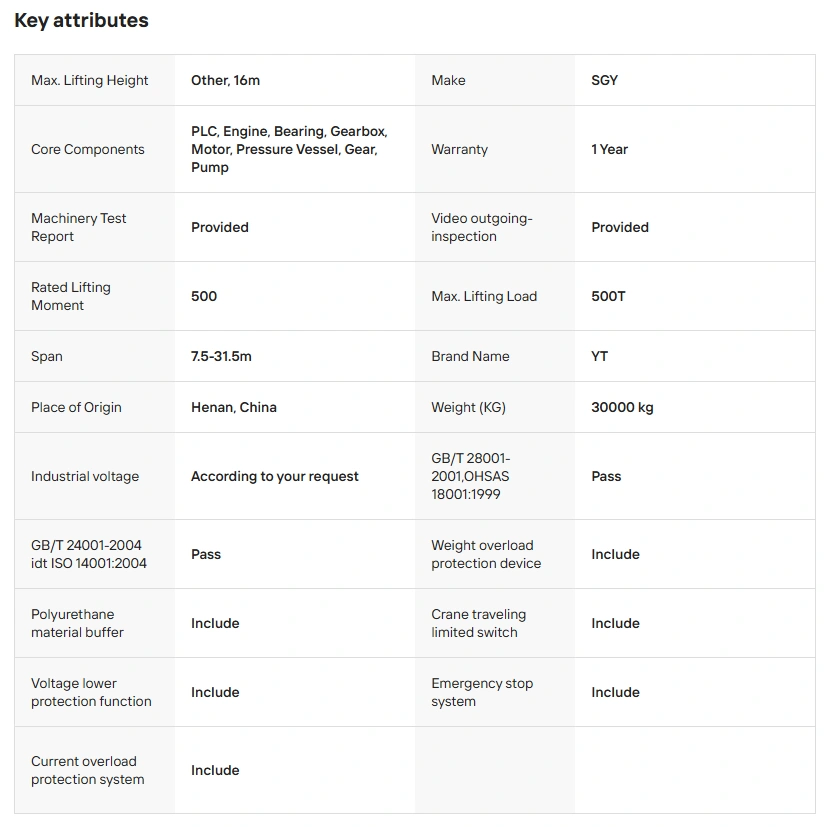

TECHNICAL DATA
APPLICATION
1. Steel Coil Handling
Coil Storage & Retrieval: Lifting steel coils (hot‑rolled, cold‑rolled, galvanized, stainless) from storage racks, floor stacks, or shipping containers.
Coil Feeding: Transporting coils to slitting lines, leveling lines, blanking lines, and stamping presses.
Coil Packaging & Shipping: Lifting finished coils for banding, wrapping, and loading onto trucks, railcars, or vessels.

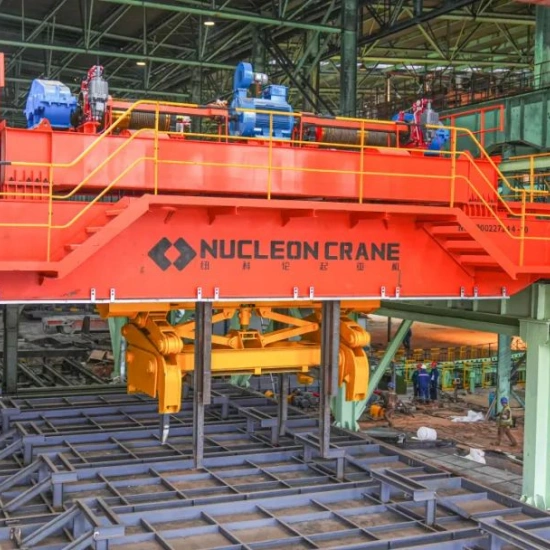

2. Steel Plate & Sheet Handling Plate Storage & Retrieval: Lifting and stacking steel plates of various thicknesses and sizes (up to 30+ meters in length) from storage racks. Edge & Surface Protection: Clamps with padded or rubberized grips prevent marring, scratching, and damage to finished surfaces. Stainless & Coated Plate: Handling polished stainless steel, coated, or painted plates with non‑marring clamp surfaces.
3. Paper Roll Handling Roll Storage: Lifting and stacking paper rolls (mother rolls, finished rolls) in paper mills, converting facilities, and warehouses. Unwinder Feeding: Transporting paper rolls to unwinders, printing presses, and converting machines. Roll Transport: Moving rolls between processing lines, storage areas, and shipping docks.
4. Drum & Barrel Handling Steel Drum Handling: Lifting and stacking steel drums (55‑gallon, 30‑gallon) containing chemicals, lubricants, paints, and hazardous materials. Plastic Drum Handling: Clamps with specialized gripping surfaces for handling plastic drums and intermediate bulk containers (IBCs). Fiber Drum Handling: Lifting fiber drums and composite containers with adjustable pressure to prevent crushing.
5. Concrete & Masonry Products Precast Concrete Handling: Lifting precast concrete elements—beams, columns, wall panels, hollow core slabs, and staircases—using specialized lifting clamps. Pavement & Curb Stone Handling: Moving concrete pavers, curb stones, and landscaping products from molds to curing racks and shipping. Manhole & Catch Basin Handling: Lifting concrete manhole sections, catch basins, and pipe sections with positive grip clamps.
6. Bale Handling (Scrap, Recyclables, Commodities) Scrap Metal Bales: Lifting compacted bales of ferrous and non‑ferrous scrap metal for loading into furnaces, railcars, or containers. Paper & Cardboard Bales: Handling bales of recycled paper, cardboard, and corrugated materials in recycling facilities. Plastic Bales: Lifting bales of PET, HDPE, LDPE, and other recycled plastics.
2. Steel Plate & Sheet Handling Plate Storage & Retrieval: Lifting and stacking steel plates of various thicknesses and sizes (up to 30+ meters in length) from storage racks. Edge & Surface Protection: Clamps with padded or rubberized grips prevent marring, scratching, and damage to finished surfaces. Stainless & Coated Plate: Handling polished stainless steel, coated, or painted plates with non‑marring clamp surfaces.
3. Paper Roll Handling Roll Storage: Lifting and stacking paper rolls (mother rolls, finished rolls) in paper mills, converting facilities, and warehouses. Unwinder Feeding: Transporting paper rolls to unwinders, printing presses, and converting machines. Roll Transport: Moving rolls between processing lines, storage areas, and shipping docks.
4. Drum & Barrel Handling Steel Drum Handling: Lifting and stacking steel drums (55‑gallon, 30‑gallon) containing chemicals, lubricants, paints, and hazardous materials. Plastic Drum Handling: Clamps with specialized gripping surfaces for handling plastic drums and intermediate bulk containers (IBCs). Fiber Drum Handling: Lifting fiber drums and composite containers with adjustable pressure to prevent crushing.
5. Concrete & Masonry Products Precast Concrete Handling: Lifting precast concrete elements—beams, columns, wall panels, hollow core slabs, and staircases—using specialized lifting clamps. Pavement & Curb Stone Handling: Moving concrete pavers, curb stones, and landscaping products from molds to curing racks and shipping. Manhole & Catch Basin Handling: Lifting concrete manhole sections, catch basins, and pipe sections with positive grip clamps.
6. Bale Handling (Scrap, Recyclables, Commodities) Scrap Metal Bales: Lifting compacted bales of ferrous and non‑ferrous scrap metal for loading into furnaces, railcars, or containers. Paper & Cardboard Bales: Handling bales of recycled paper, cardboard, and corrugated materials in recycling facilities. Plastic Bales: Lifting bales of PET, HDPE, LDPE, and other recycled plastics.
FEATURES
1
Specialized Clamping Attachments: Mechanical, hydraulic, or pneumatic clamps designed for specific load types—coils, plates, drums, bales, boxes, concrete products, and irregular shapes.
2
Positive Grip Mechanism: Provides secure engagement without the need for slings, chains, or manual rigging, reducing setup time and improving safety.
3
Load‑Sensing Control: Integrated sensors and pressure controls prevent over‑clamping, protecting delicate loads from damage.
4
Dual or Independent Clamp Operation: Available with synchronized or independently controlled clamp arms to accommodate various load sizes and configurations.
5
Rotation & Tilt Options: Optional 90°, 180°, or 360° rotation and tilting mechanisms for positioning loads at optimal angles.
6
Frequency‑Controlled Drives: Variable speed control on hoist, trolley, and bridge enables smooth operation and precise load placement.
