What Is an European Type Overhead Crane?
A European type overhead crane—also known as a European standard crane or Euro crane—represents a modern approach to bridge crane design that originated in Europe and has since gained global recognition for its efficiency, reliability, and advanced engineering.
Unlike traditional heavy-duty cranes that rely on massive structural components, European style cranes achieve high performance through:
▶Optimized girder profiles using finite element analysis
▶High-strength steel that reduces dead weight
▶Compact hoist designs with superior lifting mechanisms
▶Modular components for easier maintenance and replacement
▶Variable frequency drives for smooth, precise movement
Overview

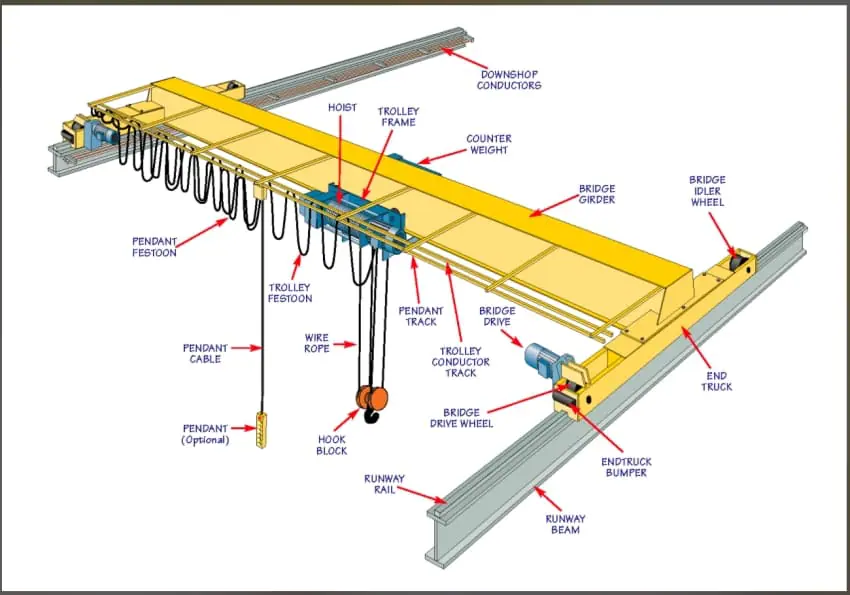

European type single girder overhead crane is a lifting equipment used to move materials across workshops, warehouses and yards. The end beams of a single girder crane are located on concrete or steel columns. It is also known as a bridge crane because its shape resembles a bridge. The space under the bridge can be used for transporting goods and materials. Obstruction by ground equipment can be avoided.
▶One main beam
▶Two end beams
▶Hoist unit: electric hoist, hand chain hoist
▶Hooks: grabs, spreaders, lifting tongs, electromagnets, etc. (FEM or DIN standard)
▶Safety devices: buffer, limiter, limit switch, braking system, etc.
▶Wheel: high strength 42CrMo forged wheel, tempered, hardness up to HB300-HB380.
▶Driving motor: three-in-one motor (motor, reducer, brake as a whole), protection grade IP55.
▶Lifting motor: three-in-one motor (motor, reducer, brake integrated), protection grade IP55
Applications
European type single girder overhead crane is widely used in machinery manufacturing, petroleum, petrochemical, ports, railways, civil aviation, electric power, food, paper, building materials, electronics and other industries, such as workshops, warehouses and other material handling occasions, especially for the need for precise positioning, large parts of the precision assembly of the occasions of material handling.
Key Differences: European vs. Traditional Overhead Cranes
Structural Comparison
Traditional Crane Design:
▶Heavy box-section girders
▶Large flange sections
▶Significant dead weight
▶Requires robust building structure
▶Higher shipping and installation costs
European Type Crane:
▶Optimized girder profiles (often with bottom flange running surface)
▶High-strength steel construction
▶Up to 30-40% lighter than traditional designs
▶Reduced building steel requirements
▶Lower transportation and installation expenses
Performance Comparison
| Parameter | Traditional Crane | European Type Crane |
|---|---|---|
| Dead Weight | 100% (baseline) | 60-70% of traditional |
| Wheel Load | Higher | Significantly lower |
| Hook Height | Standard | Greater for same building height |
| Energy Consumption | Higher | 20-30% less energy |
| Positioning Accuracy | Basic | Excellent (via VFD control) |
| Maintenance Access | Difficult | Easy (modular design) |
Core Components and Technical Features
The Hoist: Heart of the European Crane
The most distinctive feature of European type cranes is the integrated hoist cassette. Unlike traditional designs where motor, gearbox, and drum are separate components bolted together, European hoists are engineered as a single, compact unit.
Key hoist features:
Inline or parallel gearbox configurations to optimize headroom
Double braking systems with independent safety brake
Rope guides that prevent overlapping and extend wire rope life
IP55 or higher protection for dusty or wet environments
Low-noise operation compared to traditional designs
The Bridge Girder
European type girders typically feature:
Optimized cross-section calculated through FEA
Bottom flange running surface for the trolley (on single girder designs)
Welded box or profile sections using automated processes
Camber to compensate for deflection under load
Drive Systems
Variable frequency drives (VFDs) are standard on European type cranes, offering:
Smooth acceleration and deceleration reducing load swing
Precise positioning for delicate operations
Reduced mechanical wear on gears and wheels
Energy regeneration in some configurations
Programmable speed profiles for different operation modes
Control Systems
Modern European cranes feature sophisticated controls:
Radio remote control with haptic feedback
Diagnostic displays showing operating hours, faults, and maintenance alerts
Anti-sway technology that automatically adjusts travel speeds
Load weighing systems integrated into the hoist
Zone control for restricted areas
Collision avoidance for multiple cranes on same runway
Why Choose a European Type Overhead Crane?
1. Space Optimization
For facilities with height constraints, European cranes are transformative. Because the hoist is more compact, you gain valuable hook height without raising your building's roof. In some cases, this can eliminate the need for expensive building modifications.
2. Energy Efficiency
European cranes typically consume 20-30% less electricity than traditional designs. For a crane operating multiple shifts daily, this translates to thousands of dollars in annual savings.
3. Lower Building Costs
Lighter dead weight means lighter runway beams and less demanding support structures. New facilities can reduce structural steel costs. Existing buildings may accommodate a European crane when a traditional crane would require reinforcement.
4. Enhanced Safety
European cranes incorporate redundant safety systems as standard:
Two independent brakes on the hoist
Overload protection with audible/visual alarms
Emergency stop systems at multiple locations
Limit switches on all motions
Slack rope detection
5. Reduced Maintenance
Modular design means components can be replaced quickly without special tools. Many European cranes feature:
Tool-free access panels
Quick-change motor and gearbox units
Centralized lubrication points
Remote diagnostics capabilities
Why choose ZEHUA CRANES?
ZEHUA CRANES–Global Expert in Industrial Handling Solutions
As a leading manufacturer of single girder overhead travelling cranes in China, we have provided customised crane services for 5000+ enterprises around the world, with the core of accurately adapting to customers’ needs, and realising the exclusive design of “one enterprise, one solution”.
Core advantages:
1.Accurate customised design: customised single girder EOT crane solutions based on the actual working conditions of customers, optimising the balance between cost and performance, and rejecting redundant configurations.
2.Full-chain quality assurance: ISO/CE international certification, covering the entire machine and core components; stringent quality control system to ensure product reliability throughout the life cycle.
3. Full-cycle service support: professional team to provide installation and commissioning, regular maintenance services; free operation training, empowering safe and efficient operation; 20 years of ultra-long supply of spare parts to ensure the long-term operation of the equipment.
4. Lifelong Service Commitment: Project delivery is not the end of the project, we establish lifelong partnership with customers with continuous technical response.
Customise your European type overhead crane:
Expertly customise your intelligent overhead crane system:
At ZEHUA CRANES, we understand the uniqueness of each industrial scenario. Our engineers will bring 20 years of experience in European standard crane manufacturing to provide you with full process customisation.
•Lifting capacity: ____ tonnes
•Lifting height: ____ metres
•Span: ____ metres
•Power supply (e.g. 380V 50Hz 3-phase)
•Crane travelling length: ____ m
•Do we need to provide crane tracks and power supply system?
•For indoor use? Or outdoors?
•Detailed working condition of the crane:
•Other requirements: ____
When you choose ZEHUA CRANES, you are not just getting a crane, but a full lifecycle management solution that includes remote diagnostics and preventive maintenance.
Frequently Asked Questions
Q: Are European type cranes more expensive than traditional cranes?
A: Initial costs are comparable. However, total cost of ownership is typically lower due to reduced installation, energy, and maintenance expenses.
Q: Can a European crane be installed in an existing building?
A: Yes. The lighter weight often allows installation where traditional cranes would require building reinforcement.
Q: What certifications should I look for?
A: Look for FEM, ISO 9001, CE marking, and compliance with local standards such as CMAA or ASME depending on your region.
Q: How long do European type cranes last?
A: With proper maintenance, 20+ years of reliable service is standard.
Q: Can I get parts for a European crane in my country?
A: Leading European manufacturers maintain global parts and service networks. Confirm availability before purchasing.
